Robot Joint & Gearbox Components
Precision Structural Frames & Alignment Plates
High-precision custom-machined structural components, robot base plates, and alignment systems — engineered for superior rigidity, accurate dowel-pin positioning, and lightweight performance.
- Robot base plates
- Structural plates
- Alignment plates with dowel pin schemes
- Stiffener ribs
- Structural brackets
- Gantry side plates
- Frame nodes
- Lightweight
- Pocketed plates
Structural & Aligning
Alignment Plates with Dowel Pin Schemes
Application: Ensure precise positioning and alignment between structural frames, bases, and modules in robotic systems.
Material Examples: Aluminum 6061-T6, 7075-T6, Stainless Steel 304/316.
Tolerance / Finish Notes: Dowel pin hole tolerance ±0.005 mm, hole position ±0.01 mm, flatness ≤ 0.012 mm. Surface finish Ra 0.8–1.6 µm.
Structural & Aligning

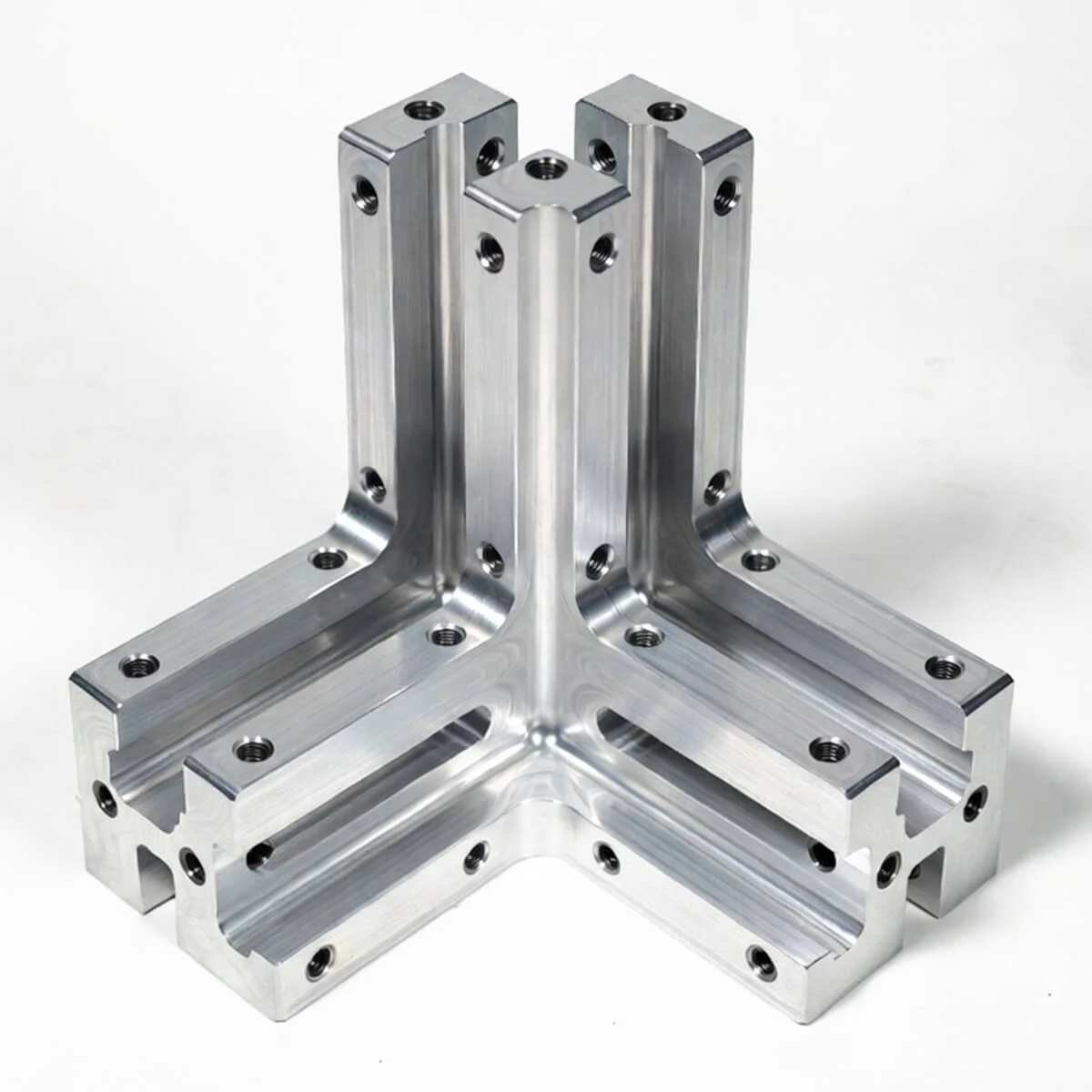

Frame Nodes
Application: Connect multiple structural members at joints in robot bases, frames, and gantry systems.
Material Examples: Aluminum 7075-T6, 6061-T6, Stainless Steel.
Tolerance / Finish Notes: Critical bore and face tolerances ±0.01 mm, perpendicularity ±0.008 mm, surface finish Ra 0.8 µm.
Structural & Aligning

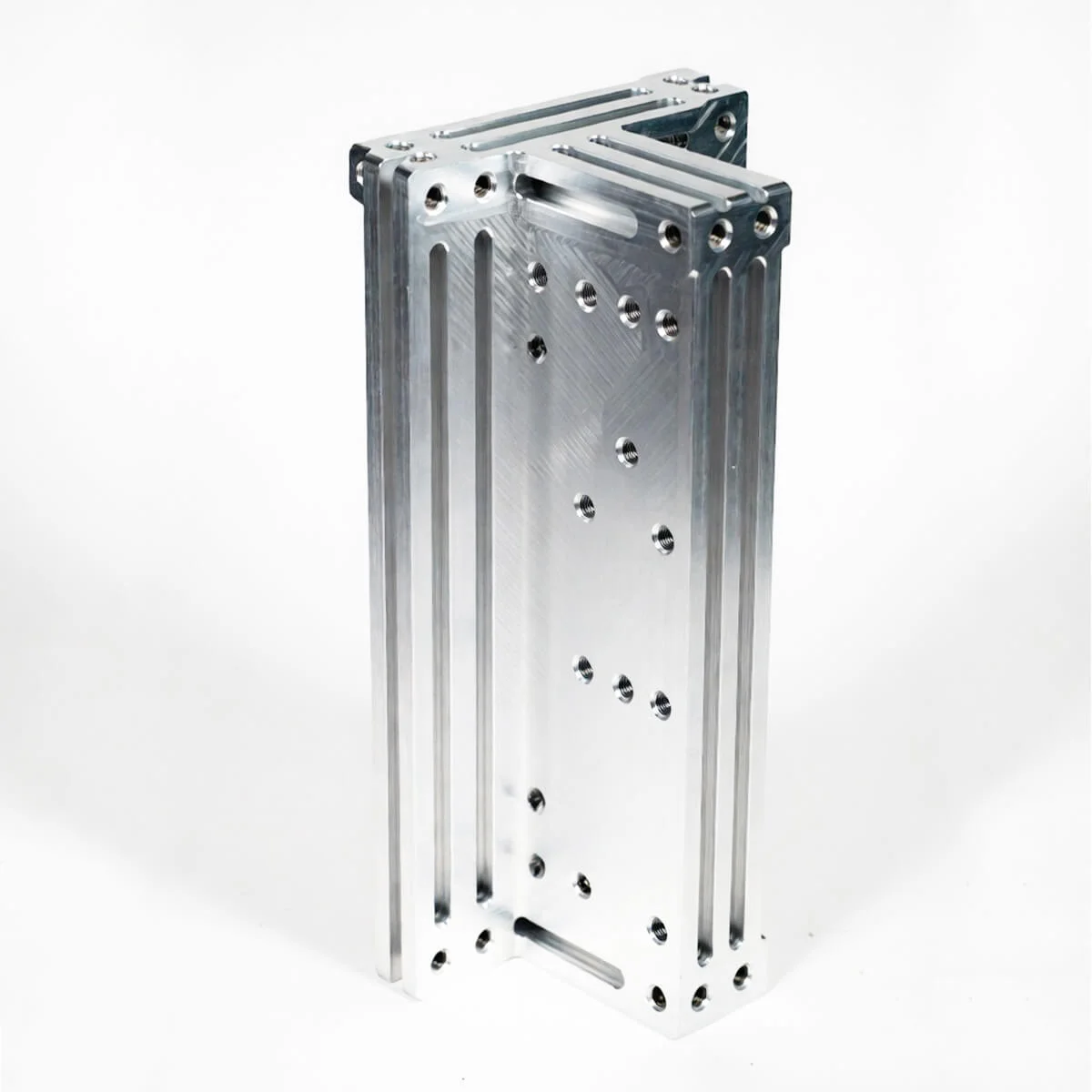

Gantry Side Plates
Application: Form the vertical structure of gantries and large robotic frames, supporting rails and carriages.
Material Examples: Aluminum 6061/7075, Stainless Steel.
Tolerance / Finish Notes: Flatness ≤ 0.015 mm, parallelism ±0.01 mm, mounting hole tolerance ±0.01 mm.
Structural & Aligning

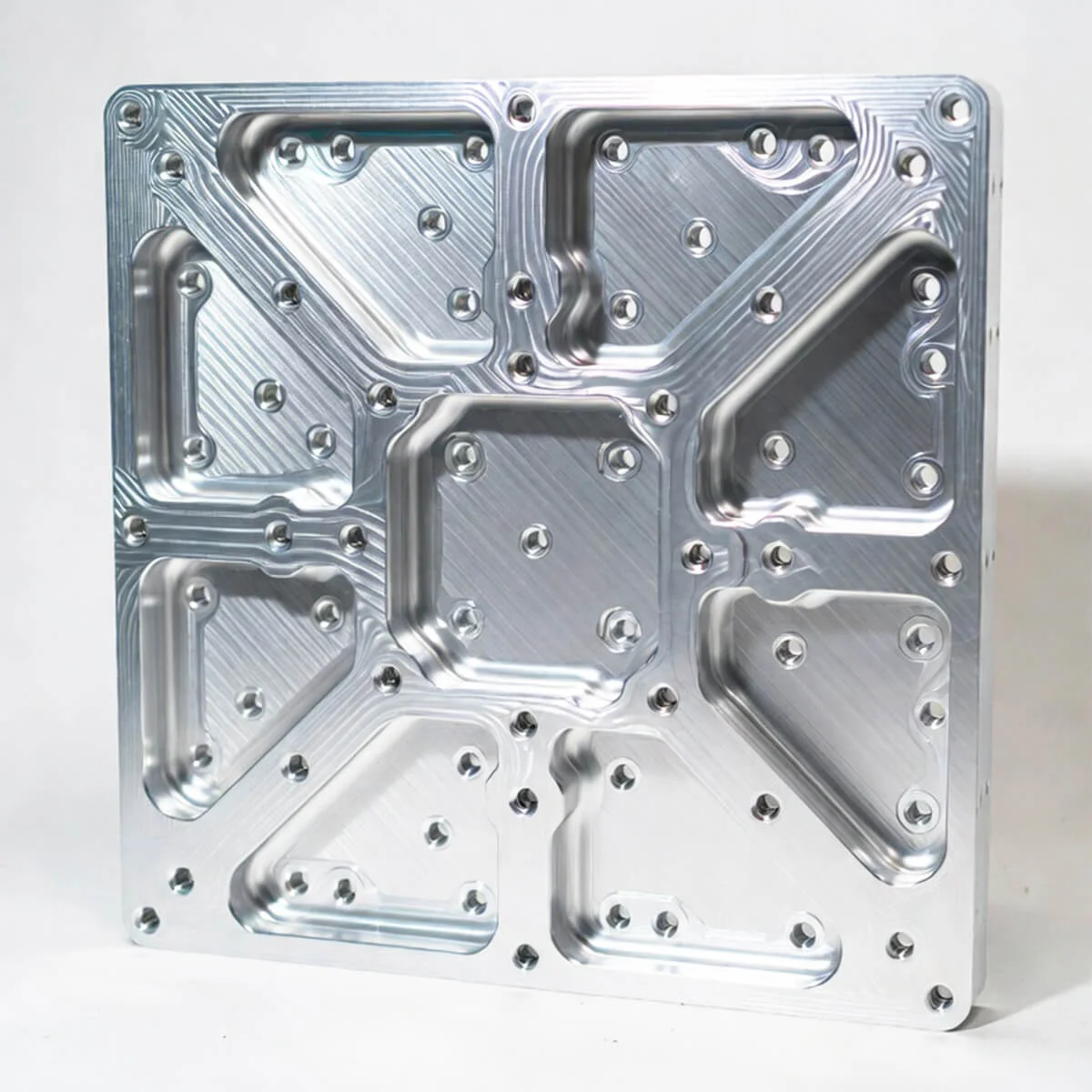

Lightweight Pocketed Plates
Application: Structural panels for robot bases and frames where weight reduction and stiffness are critical.
Material Examples: Aluminum 7075-T6, 6061-T6.
Tolerance / Finish Notes: Flatness ≤ 0.012 mm, pocket depth tolerance ±0.05 mm, surface finish Ra 1.6 µm.
Structural & Aligning

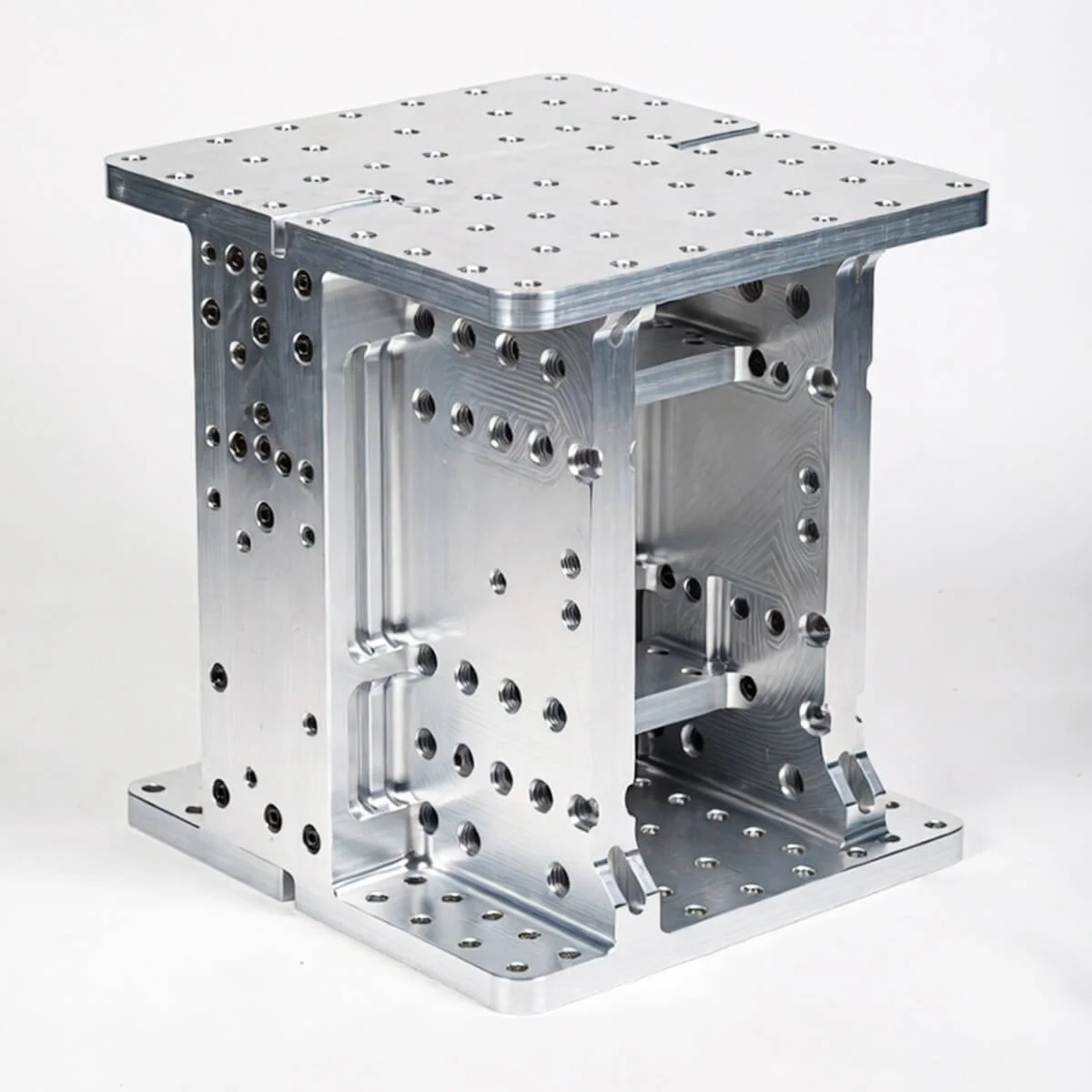

Robot Base Plates
Application: Provide a stable and accurately aligned foundation for industrial and collaborative robots.
Material Examples: Aluminum 7075-T6, 6061-T6, Stainless Steel.
Tolerance / Finish Notes: Overall flatness ≤ 0.01 mm, mounting hole pattern ±0.01 mm, surface finish Ra 0.8 µm.
Structural & Aligning

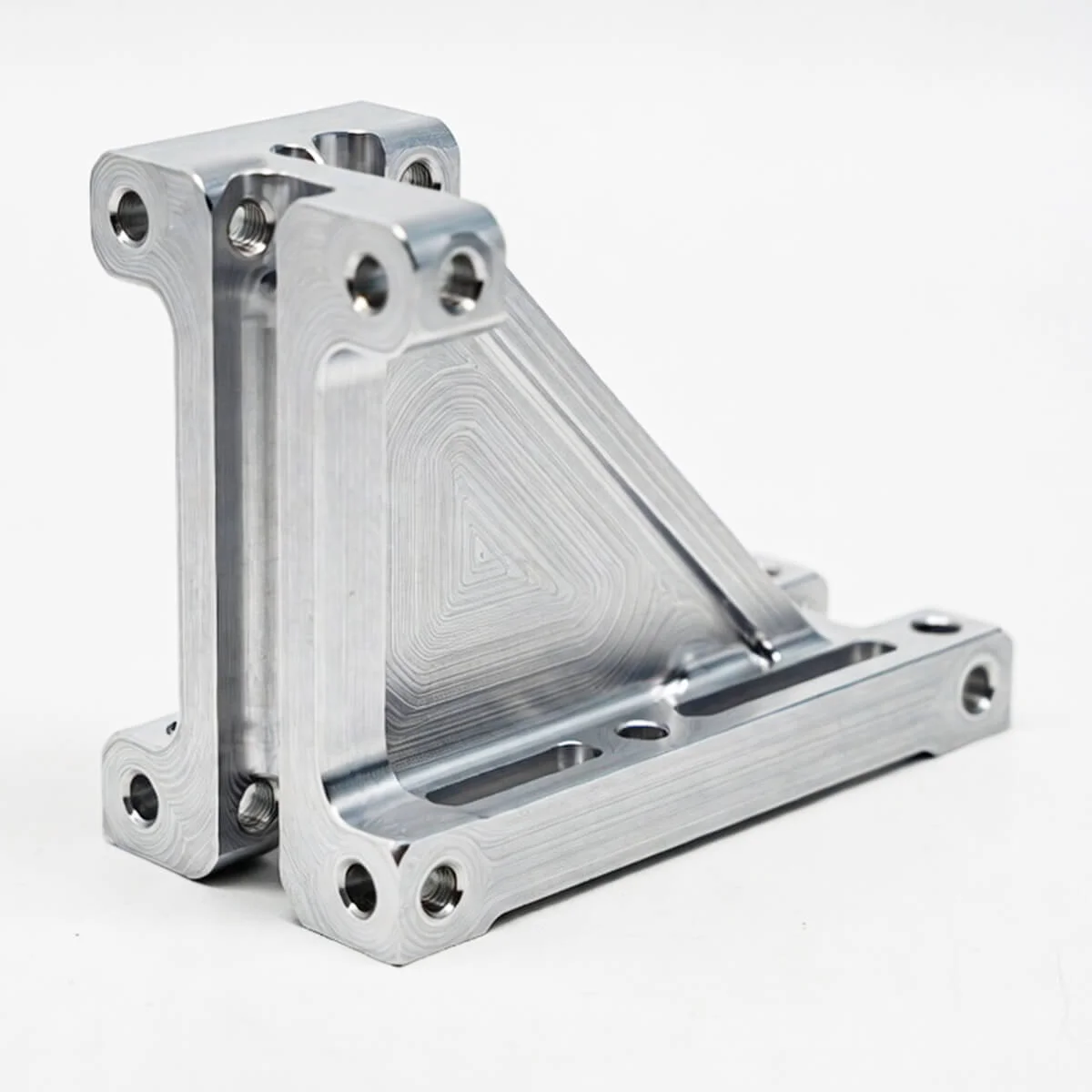

Stiffener Ribs
Application: Reinforce structural plates, frames, and gantries against bending and vibration.
Material Examples: Aluminum 6061/7075, Stainless Steel.
Tolerance / Finish Notes: Thickness tolerance ±0.05 mm, perpendicularity ±0.01 mm, surface finish Ra 1.6 µm.
EOAT & Gripper

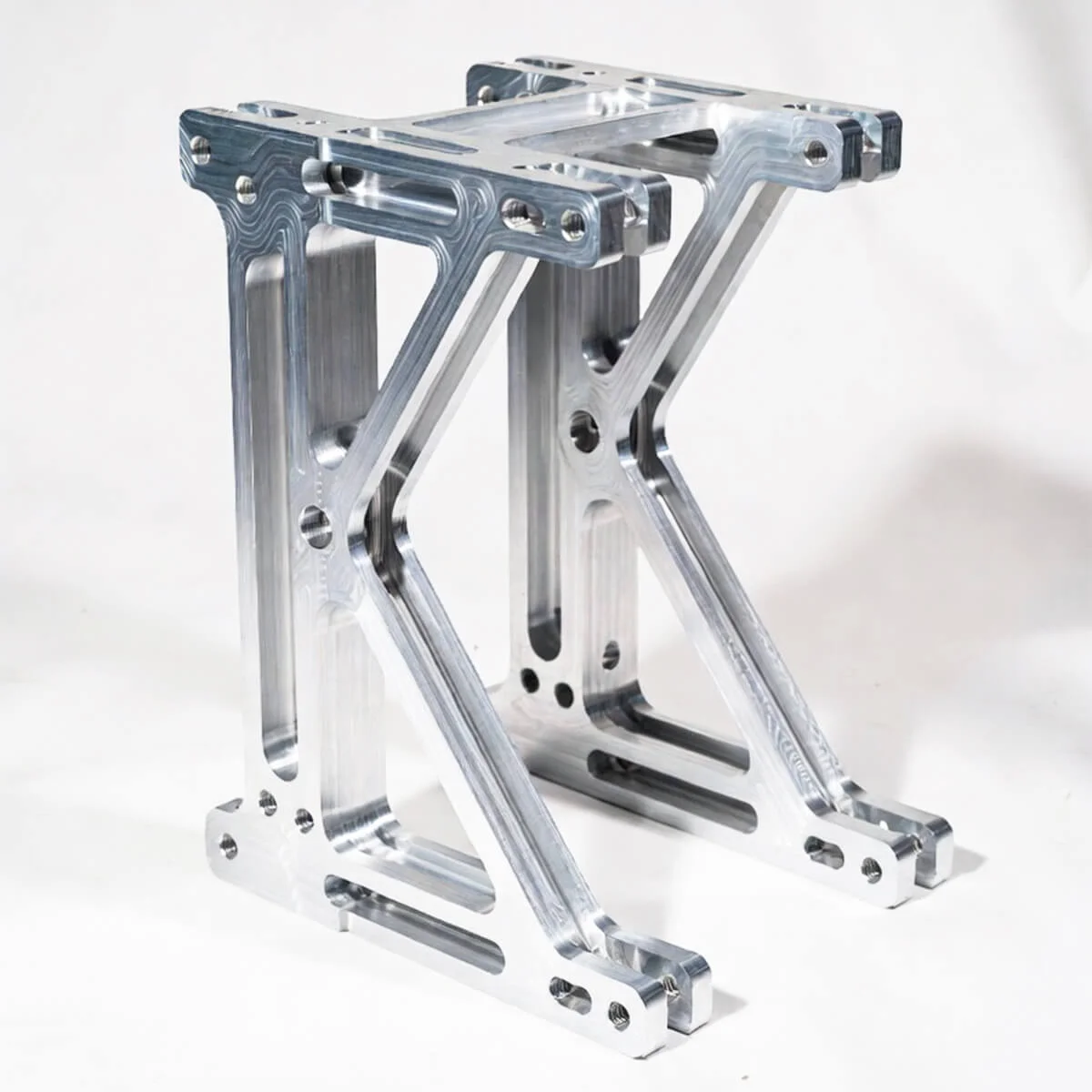

Structural Brackets
Application: Connect and reinforce frame members in robot structures and automation equipment.
Material Examples: Aluminum 7075-T6, 6061-T6, Stainless Steel.
Tolerance / Finish Notes: Hole position tolerance ±0.01 mm, angular accuracy ±0.1°, flatness ≤ 0.015 mm.
EOAT & Gripper

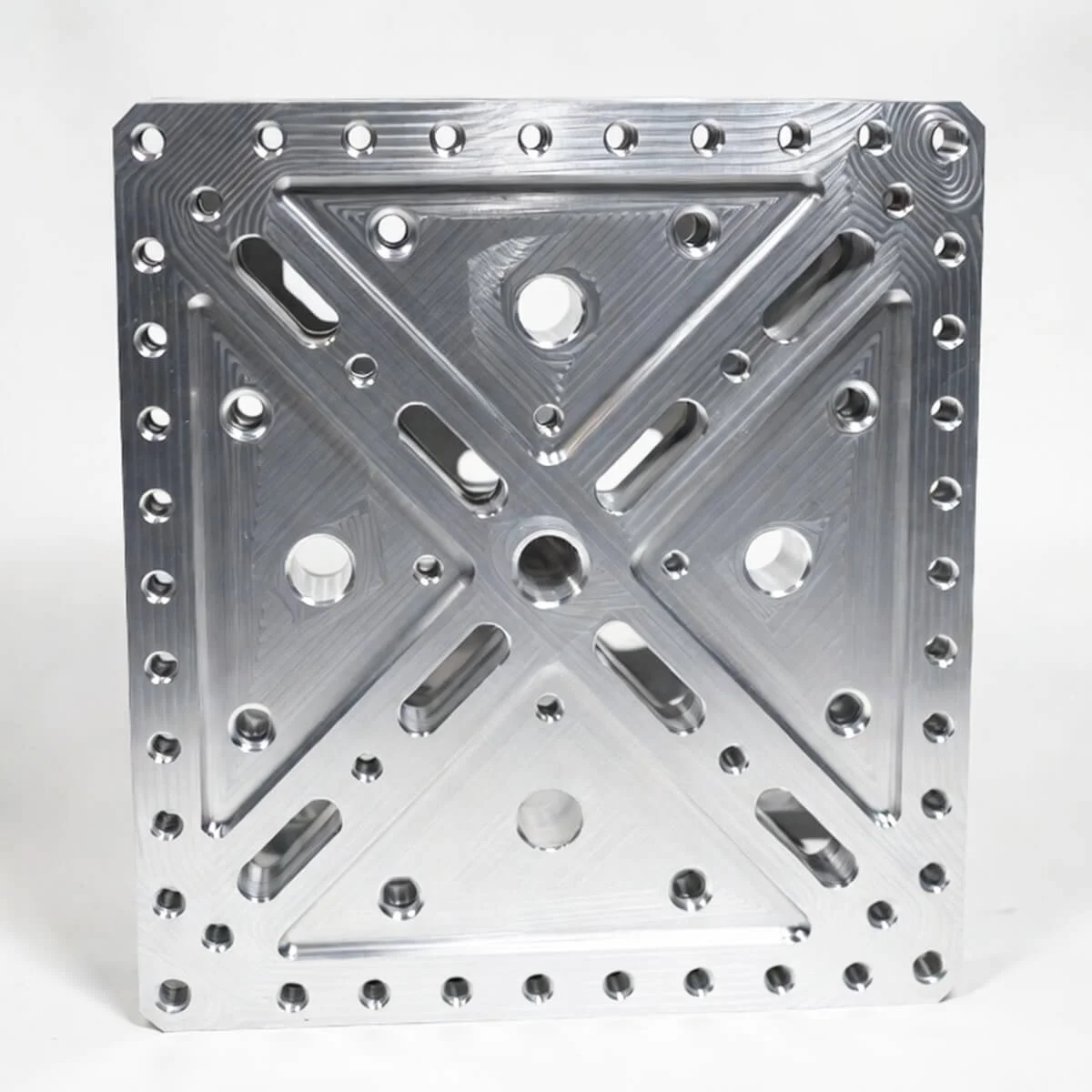

Structural Plates
Application: Core structural elements for robot frames, machine bases, and custom automation platforms.
Material Examples: Aluminum 6061-T6, 7075-T6, Stainless Steel.
Tolerance / Finish Notes: Flatness ≤ 0.012 mm, hole pattern tolerance ±0.01 mm, surface finish Ra 0.8–1.6 µm.
